Weed Membrane vs Gravel Grids: Which Works Better?

A weed membrane helps suppress growth from below; a gravel grid holds the stones in place. For a driveway or path that needs a stable gravel surface, a grid with an integrated membrane combines these functions. Neither prevents all weeds, because seeds can still arrive and grow at the surface.

What Is a Weed Membrane?

A weed membrane is a fabric layer laid beneath gravel or other landscaping materials to help suppress weeds growing from below. It does not hold loose gravel in place. Choose the membrane for its intended use and follow the manufacturer’s installation guidance.

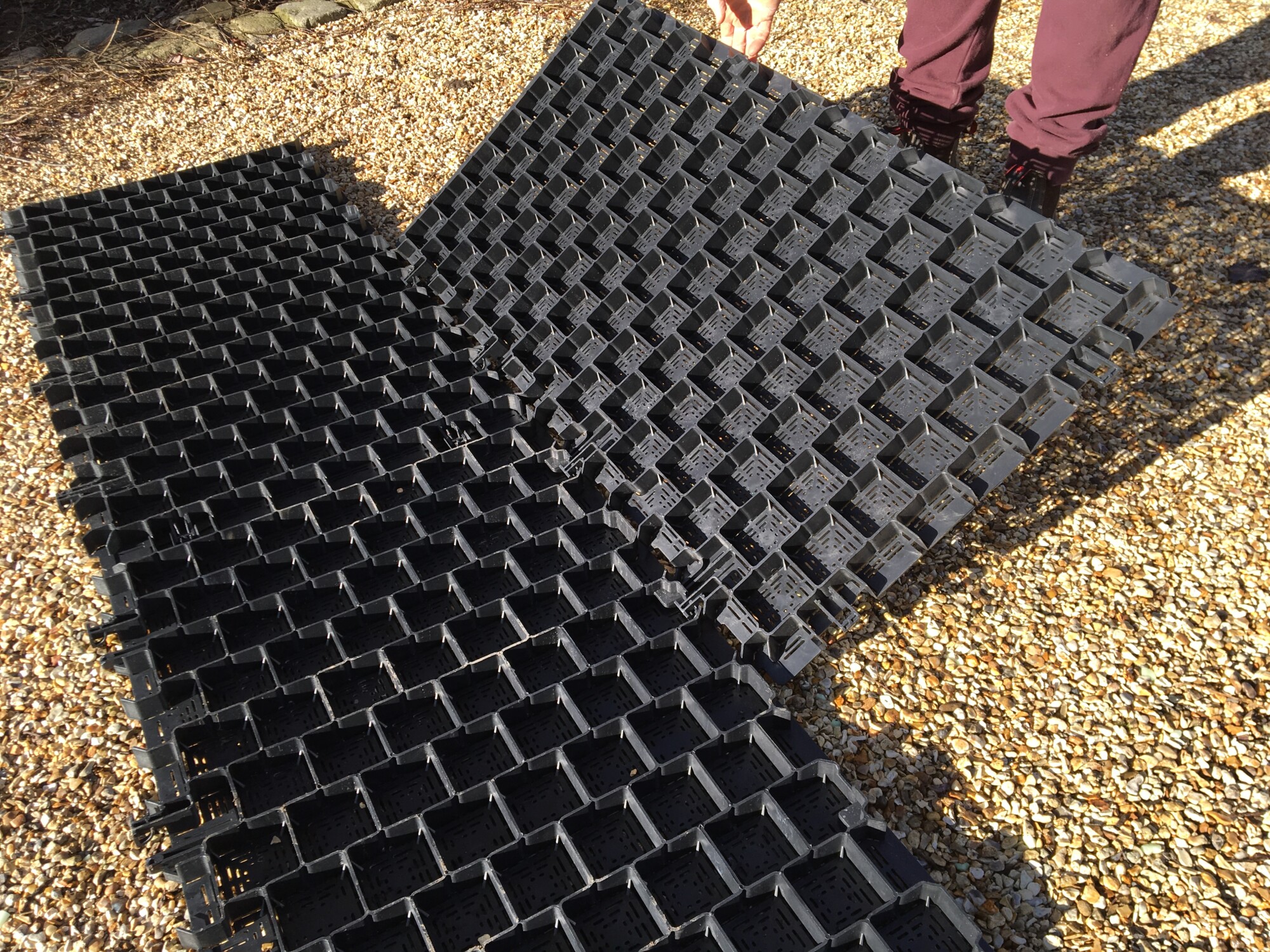

What Is a Gravel Grid with Membrane?

Gravel grids are cellular panels that retain aggregate within their cells. Some systems, including CORE DRIVE, have a geotextile membrane attached to the underside. This helps keep gravel from migrating beneath the cell walls and provides weed suppression from below.

The CORE DRIVE 50-35HD specification identifies its attached membrane as a 50gsm non-woven geotextile. It is heat-welded to the grid. This is not a specification for a tree-root barrier.

How Do Grids and Membranes Affect Weeds?

The membrane provides the weed-suppression layer, while the grid’s main role is gravel stabilisation. A grid does not stop seeds landing on the finished surface.

The RHS guidance on weeds on hard surfaces explains that weeds can arrive as wind-blown seeds or spread from nearby planting. Surface weeds can therefore appear above a membrane, even when the membrane remains intact. Regular inspection and removal of unwanted seedlings are still part of caring for a gravel surface.

Limitations of Weed Membranes

A membrane cannot prevent every route by which weeds establish. Its performance depends on the material, its condition, installation and the weeds present. It also cannot provide the confinement that a gravel grid gives to loose stones.

Drainage depends on the complete construction, including the membrane, aggregate, sub-base and ground conditions. Choose a suitable permeable build-up rather than assuming that any membrane or grid will solve a drainage problem.

Advantages of Gravel Grids

For trafficked gravel areas, a correctly specified grid helps retain the aggregate and limit its movement under feet or tyres. An attached geotextile helps retain the gravel beneath each cell. These are practical benefits when a stable gravel finish is required.

Select the grid for the expected traffic, loading and slope, and install it with the specified aggregate and sub-base. The CORE DRIVE range guide sets out the different options and links to their installation documents.

Which Works Better Long-Term?

The right choice depends on the problem you need to solve. A membrane addresses weed growth from below. A grid adds gravel confinement where surface stability is also required. A grid with an integrated membrane combines both functions, but does not make the surface weed-free.

Long-term results depend on the whole installation and ongoing care. Remove unwanted seedlings, keep the surface clear of accumulated leaves and debris, and maintain the gravel cover specified for your chosen grid.

Best Practice: Combining Solutions

Follow the complete installation detail for the chosen product. Where a grid already has an attached membrane, check the specification before adding another layer directly beneath it. Any separate geotextile required elsewhere in the build-up has its own purpose and position.

For CORE DRIVE, use the appropriate specification to confirm the sub-base, laying layer, aggregate and installation method. Contact the CORE team with your surface use, traffic and site conditions for help choosing a suitable system.
