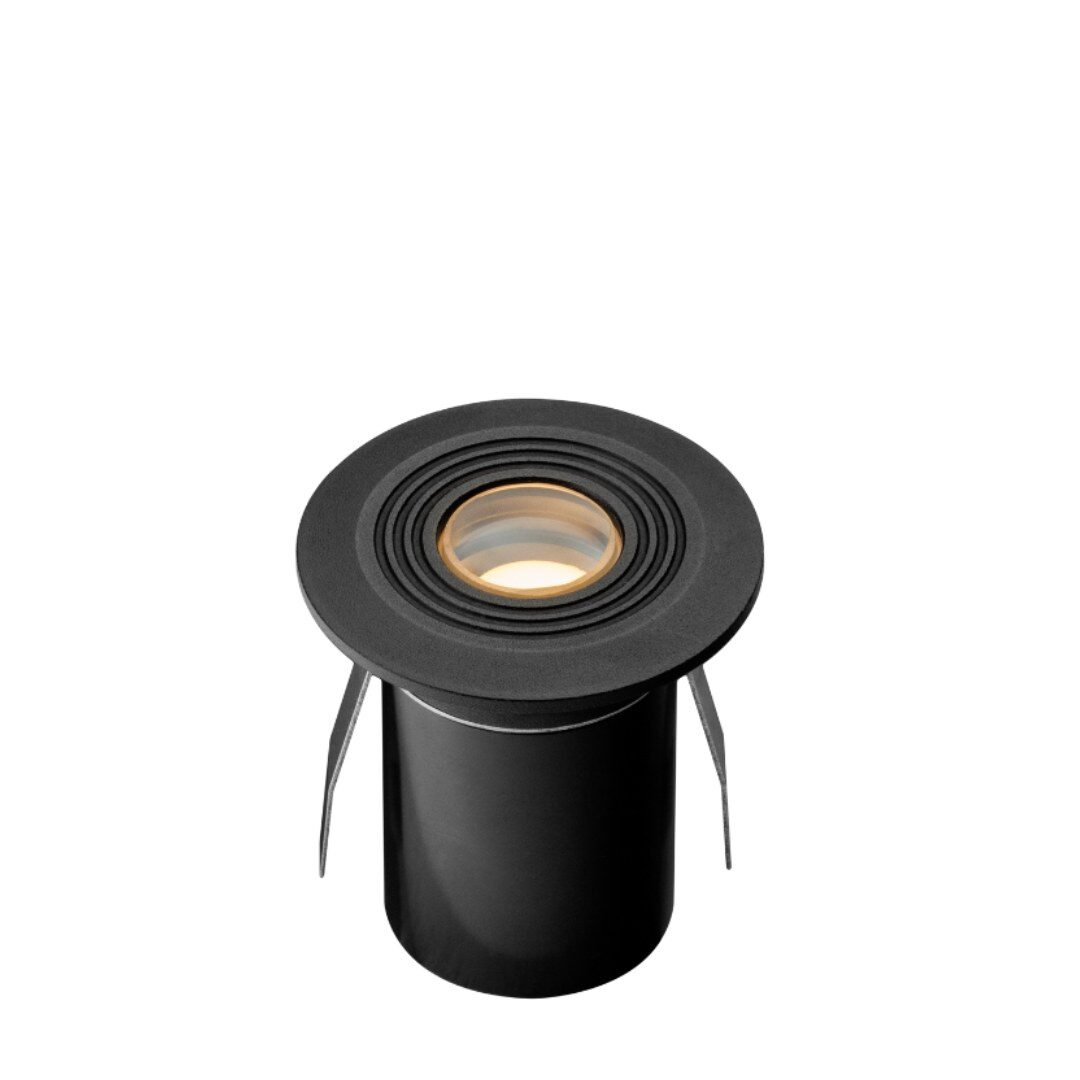

Recessed Decking Light – Lightpro Onyx 30 RA

Sale!
Recessed Decking Light – Lightpro Onyx 30 RA
Recessed Decking Light – Lightpro Onyx 30 RA - Image 2
Recessed Decking Light – Lightpro Onyx 30 RA - Image 3
Recessed Decking Light – Lightpro Onyx 30 RA - Image 4
Recessed Decking Light – Lightpro Onyx 30 RA - Image 5
Recessed Decking Light – Lightpro Onyx 30 RA - Image 6
Recessed Decking Light – Lightpro Onyx 30 RA - Image 7

Recessed Decking Light – Lightpro Onyx 30 RA

Anthracite aluminium recessed decklight, 30mm and driveable, rated IP67. Warm 2700K light behind opal glass that lifts out for a clear lens, plus a honeycomb louvre to control glare.

12V low-voltage system · 6-year warranty only when installed as a complete Lightpro system (Lightpro transformer, cable and connectors).

x

In the trade?

Login or Request an account

Not in the trade? Buy online here

Buy online here

Trustpilot

12V Plug & Play System · 6-Year Warranty

12V low-voltage fitting: this light runs on the Lightpro 12V system and must be powered by a Lightpro 12V transformer via Lightpro cable and connectors. It cannot be wired directly to mains power. The Lightpro transformer plugs into a standard outdoor socket and steps mains power down to a safe 12 volts, so there’s no electrician needed and the cable doesn’t need to be buried.

Warranty – complete Lightpro system required: Lightpro’s 6-year manufacturer’s warranty only applies when this product is installed as part of a complete Lightpro 12V system, meaning Lightpro fittings, a Lightpro transformer, Lightpro cable and Lightpro connectors used together. Connecting it to another brand’s transformer, cable or connectors voids the warranty. It must be installed as the product manual describes, the included light source is excluded, and proof of purchase is required.

Read the full Lightpro warranty terms →

Make it a complete system with a Lightpro Power Pack

No Lightpro transformer and cable yet? Add a Lightpro 12V Power Pack (transformer, cable and connectors) and your lights qualify for the 6-year warranty as a complete Lightpro system.

With these lights about 1 m apart: Small (100 W, 25 m) runs up to 21, Medium (100 W, 50 m) up to 46, Large (150 W, 100 m) up to 92. Mixing lights? Go by your cable route and total watts – each Power Pack page explains how.

The Onyx 30 RA is the anthracite aluminium version of the 30mm Onyx decklight, for schemes wanting a dark fitting rather than a bright stainless one: dark timber decking, charcoal porcelain, black-edged steps. It sets into a 30mm hole and is rated to be driven over, so it can cross a driveway as well as edge a path.

Opal glass comes fitted and can be lifted out if you prefer a clear lens, and the supplied honeycomb louvre cuts glare where the decklight sits in a sightline. 0.5W at 2700K keeps the light low and warm, with CRI 83. Sealed to IP67 with a 1 metre tail and F-connector onto a Lightpro 12V run.

Key features

  • Anthracite aluminium, the dark alternative to the stainless Onyx 30 RS
  • Driveable, rated for vehicle traffic

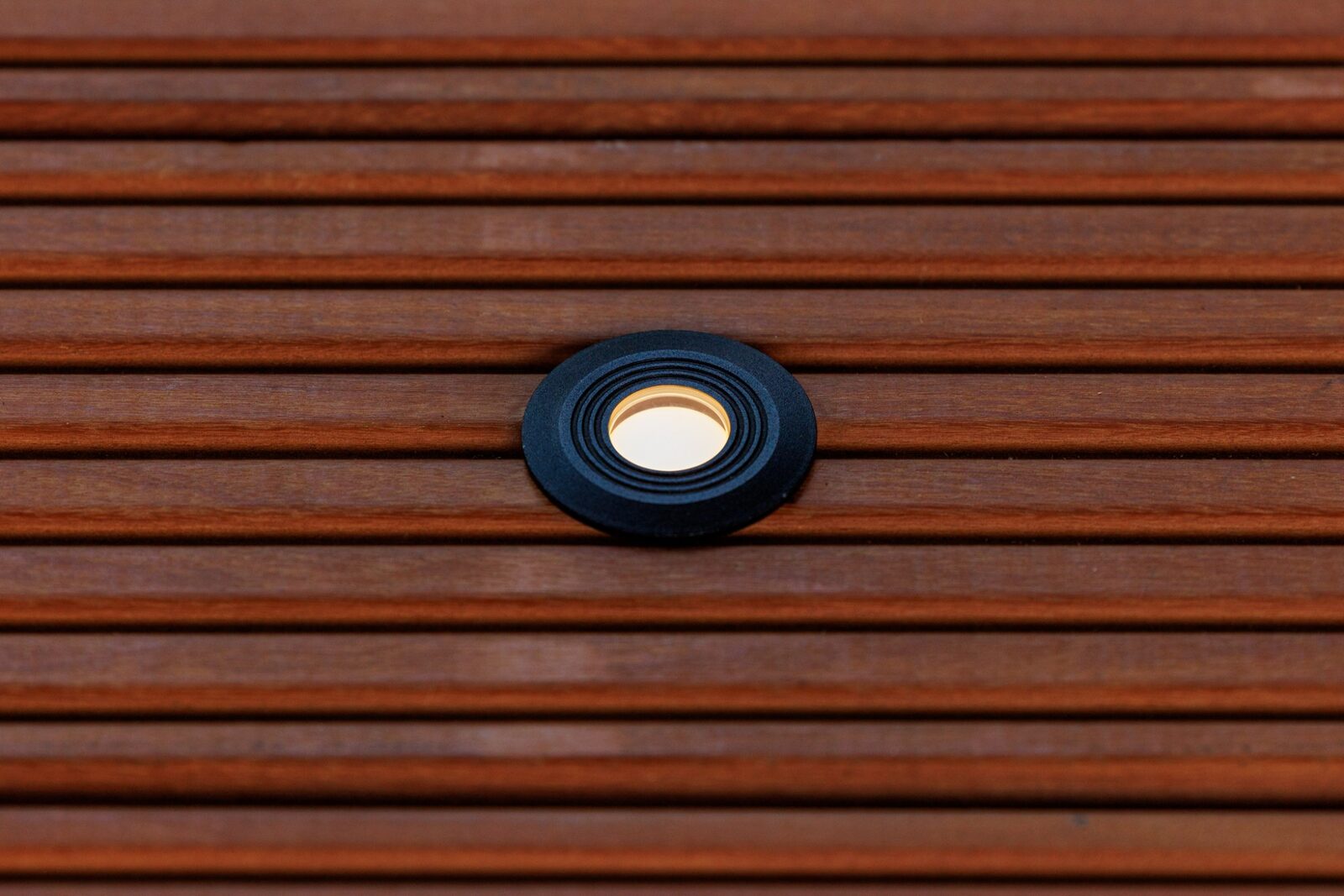

  • Removable opal glass with a clear lens underneath

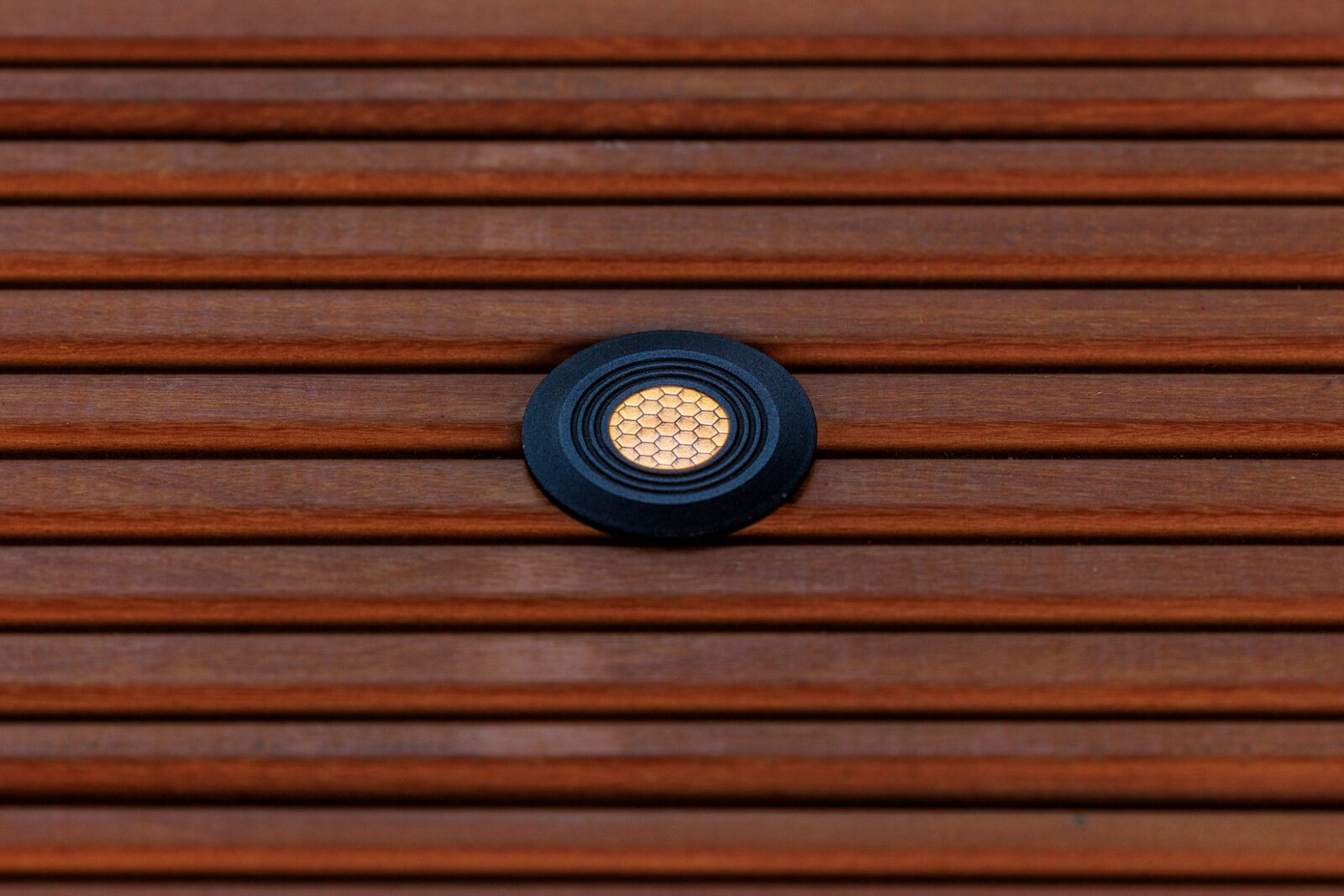

  • Honeycomb louvre supplied to reduce glare and stray light
  • 0.5W at 2700K, CRI 83, 65 degree beam
  • IP67, 30mm drill diameter, 1 metre cable with F-connector

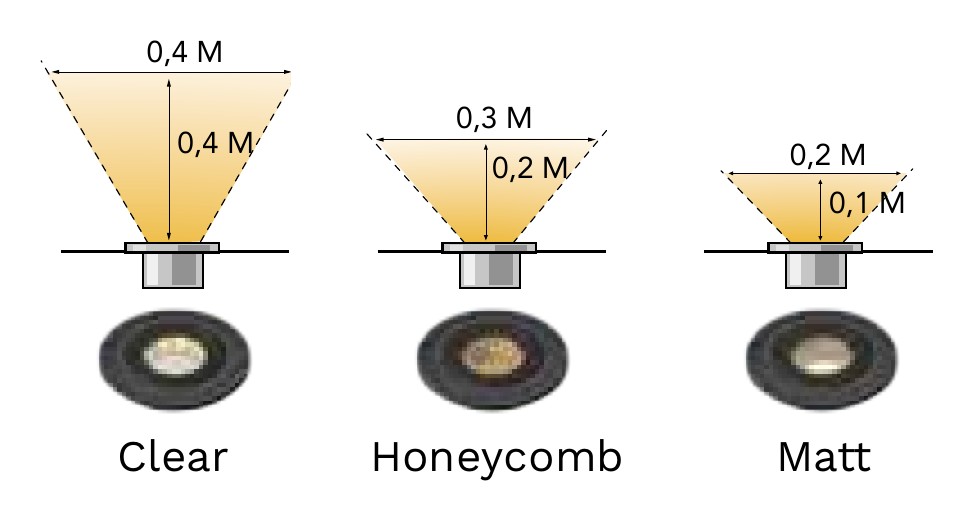

Light effect

Lightpro Onyx 30 RA light effect diagram

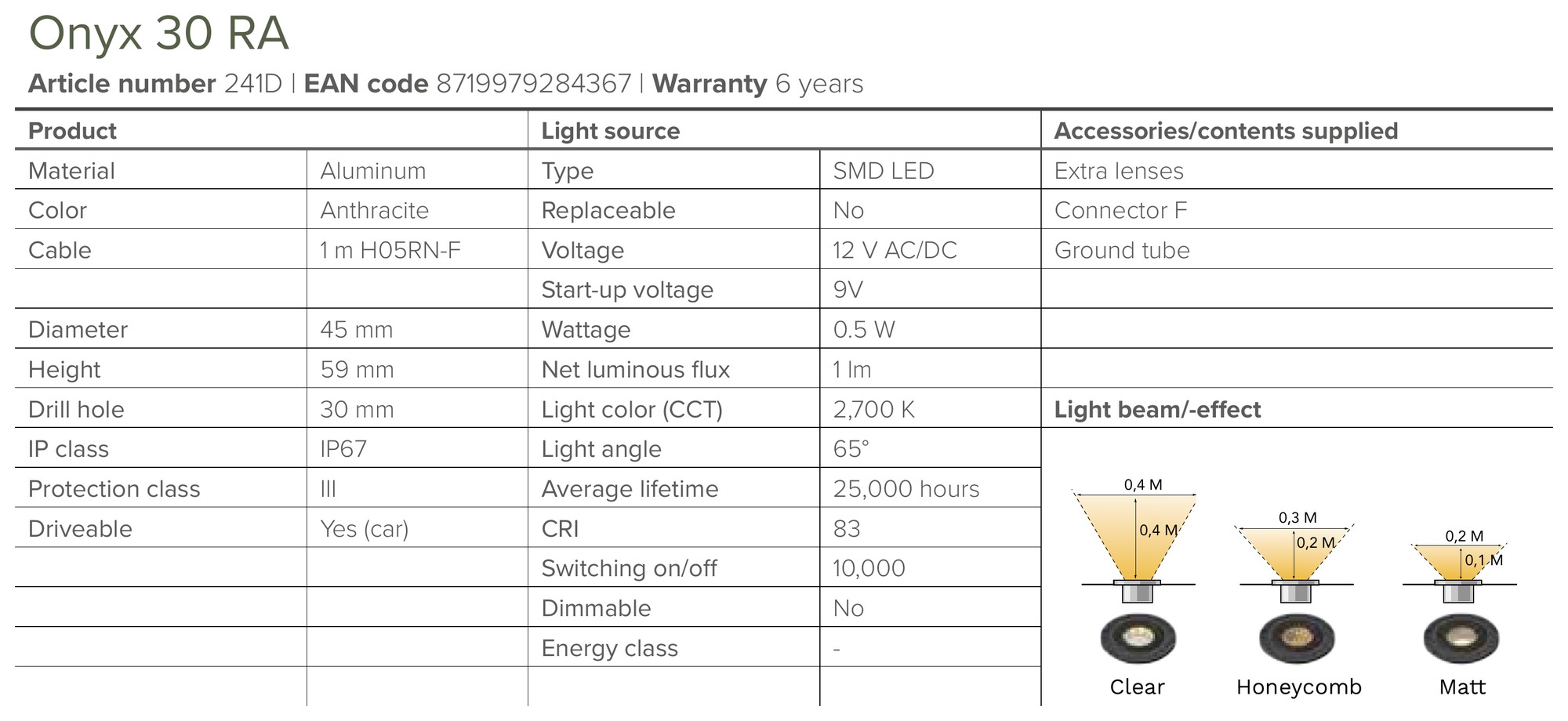

Specifications

  • Article number: 241D
  • EAN: 8719979284367
  • Voltage: 12V low voltage (Lightpro 12V system)
  • Suitable for: Terrace, Driveway, Path, Roof, Staircase
  • Dimensions (H x W x D): 59 mm x 45 mm x 45 mm
  • Material: Aluminium
  • Colour: Anthracite
  • IP rating: IP67
  • Electrical protection class: III
  • Drill hole diameter: 30 mm
  • Power: 0.5 W
  • Light output: 1 lm
  • Light colour: Warm white
  • Colour temperature: 2700 K
  • Colour rendering (CRI): 83
  • Beam angle: 65°
  • Light direction: Upwards
  • Light source type: SMD LED
  • Light sources per fitting: 1
  • Light source included: Yes
  • Replaceable light source: No
  • Dimmable: No
  • External dimmer compatible: No
  • Smart: No
  • Cable length: 1 m
  • Cable size: 20AWG
  • AC/DC compatible: Yes
  • Operating temperature: -20 °C to +45 °C
  • Rated life: 25,000 hours
  • Drive-over: Yes
  • Underwater: No
  • Adjustable: No
  • Supplied accessories: Honeycomb, F-connector
  • Fixings supplied: Ground tube
  • Weight: 0.177 kg
  • Warranty: 6 years

Downloads & documents

📄 Product sheet (PDF)📖 Instruction manual (PDF)▶ Installation video (YouTube)
