Lightpro LED Strip Light Connector Lead
Sale!

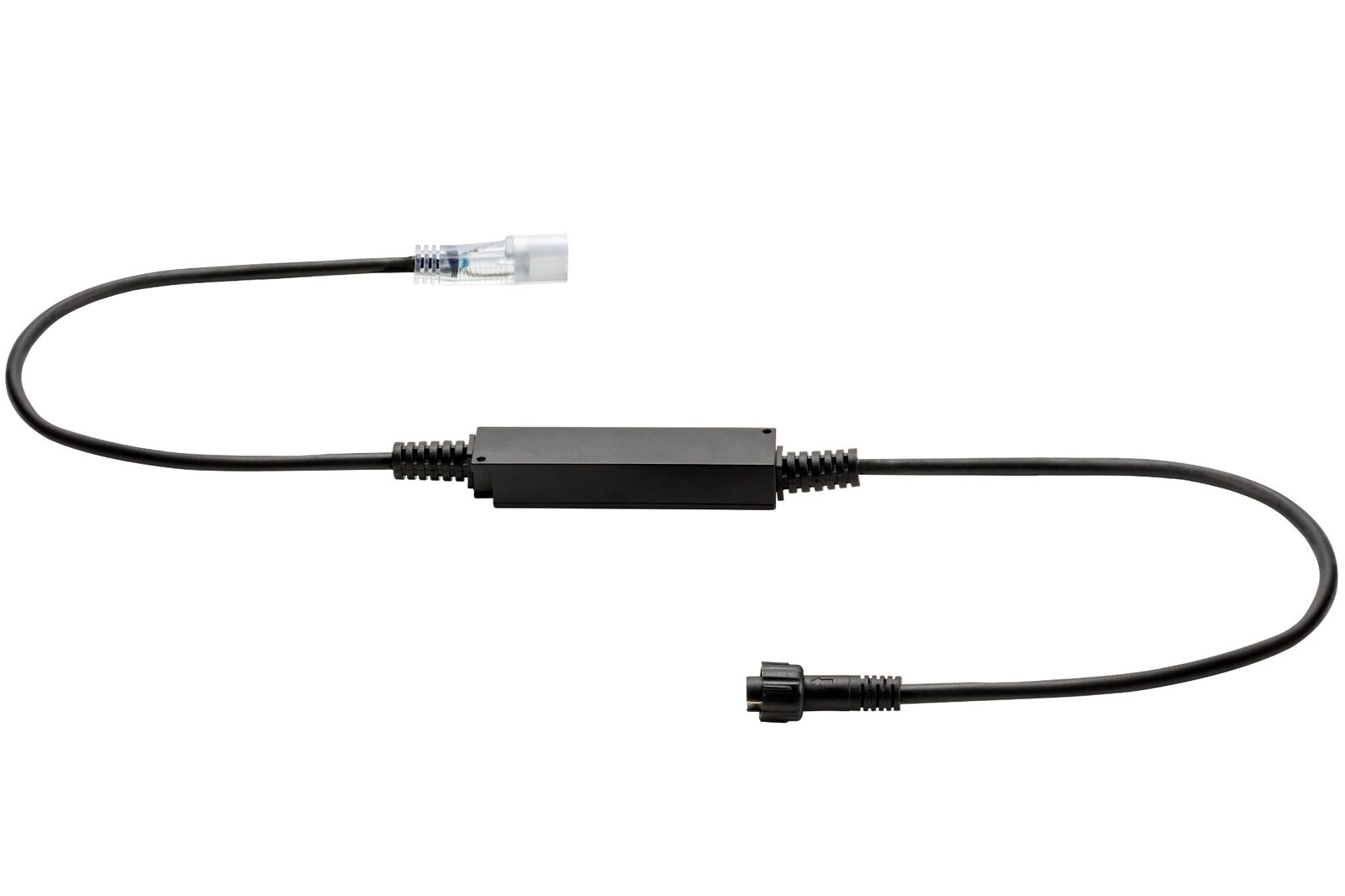

Lightpro LED Strip Light Connector Lead
Connects Lightpro 12V LED strip to a cable run. A one metre lead with a male connector at the end, plus a female F-connector and sealant to make the joint watertight.
Lightpro 12V system component · 6-year warranty only when installed as a complete Lightpro system.
In the trade?
Not in the trade? Buy online here
12V Plug & Play System · 6-Year Warranty
12V system component: this is part of the Lightpro 12V low-voltage system and is designed to be used only with Lightpro fittings, transformers, cable and connectors. The Lightpro transformer plugs into a standard outdoor socket and steps mains power down to a safe 12 volts, so there’s no electrician needed and the cable doesn’t need to be buried.
Warranty – complete Lightpro system required: Lightpro’s 6-year manufacturer’s warranty only applies when this product is installed as part of a complete Lightpro 12V system, meaning Lightpro fittings, a Lightpro transformer, Lightpro cable and Lightpro connectors used together. Connecting it to another brand’s transformer, cable or connectors voids the warranty. It must be installed as the product manual describes, and proof of purchase is required.
Every run of Lightpro LED strip needs one of these. The connector terminates the cut end of the strip and carries a 1 metre lead with a male connector, which then plugs into the main 12V cable run through the supplied F-connector. One is required per run, including each length cut off a reel.
Adhesive sealant is included to seal the joint, which is where a strip installation normally fails. The connector body itself is rated IP44; sealed as instructed, the finished connection reaches IP67 to match the strip. Black plastic, 18AWG cable, protection class III.
Key features
- Required to connect Lightpro 12V LED strip to a cable run, one per run
- 1 metre lead with a male connector on the end
- Female F-connector and adhesive sealant supplied
- Sealed connection achieves IP67; the connector body itself is rated IP44
- Black plastic, 27 x 27 x 60mm, 18AWG cable
Specifications
- Article number: 220L
- EAN: 8719979283391
- Voltage: 12V low voltage (Lightpro 12V system)
- Dimensions (H x W x D): 27 mm x 27 mm x 60 mm
- Material: Plastic
- Colour: Black
- IP rating: IP44
- Electrical protection class: III
- Smart: No
- Cable length: 1 m
- Cable size: 18AWG
- AC/DC compatible: Yes
- Operating temperature: -20 °C to +50 °C
- Fixings supplied: F connector
- Weight: 0.16 kg
- Warranty: 6 years
