Garden Spike Spotlight – Lightpro Castor 9
Sale!

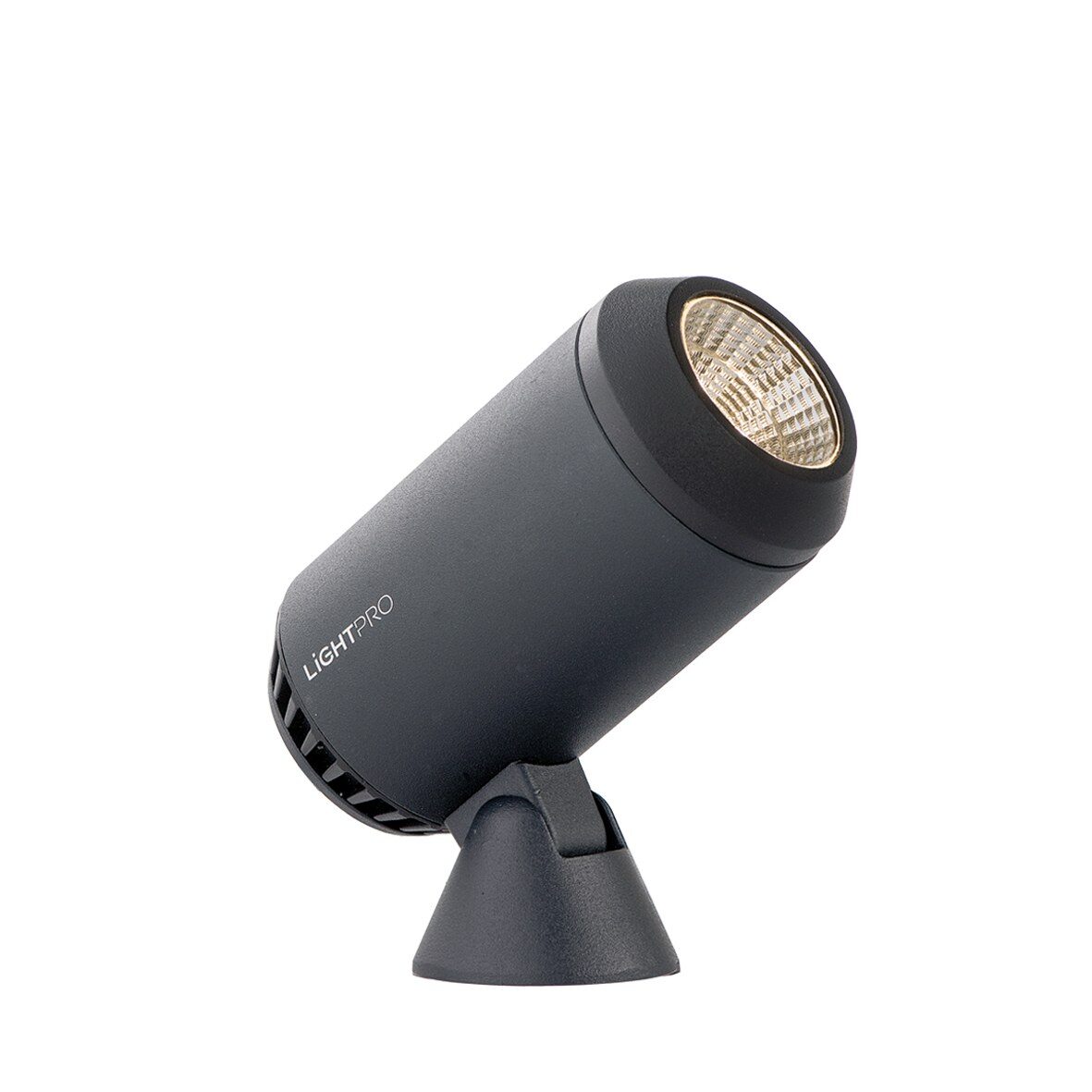

Garden Spike Spotlight – Lightpro Castor 9
Energy class F · Energy label · Product information sheet
The largest Castor spot: 9 W, CRI 91 and a 60-degree beam that narrows to 30 degrees with the supplied reflector. Reaches up to fifteen metres for tall trees and shrubs.
12V low-voltage system · 6-year warranty only when installed as a complete Lightpro system (Lightpro transformer, cable and connectors).
In the trade?
Not in the trade? Buy online here
12V Plug & Play System · 6-Year Warranty
12V low-voltage fitting: this light runs on the Lightpro 12V system and must be powered by a Lightpro 12V transformer via Lightpro cable and connectors. It cannot be wired directly to mains power. The Lightpro transformer plugs into a standard outdoor socket and steps mains power down to a safe 12 volts, so there’s no electrician needed and the cable doesn’t need to be buried.
Warranty – complete Lightpro system required: Lightpro’s 6-year manufacturer’s warranty only applies when this product is installed as part of a complete Lightpro 12V system, meaning Lightpro fittings, a Lightpro transformer, Lightpro cable and Lightpro connectors used together. Connecting it to another brand’s transformer, cable or connectors voids the warranty. It must be installed as the product manual describes, the included light source is excluded, and proof of purchase is required.
Make it a complete system with a Lightpro Power Pack
No Lightpro transformer and cable yet? Add a Lightpro 12V Power Pack (transformer, cable and connectors) and your lights qualify for the 6-year warranty as a complete Lightpro system.
With these lights about 5 m apart: Small (100 W, 25 m) runs up to 5, Medium (100 W, 50 m) up to 10, Large (150 W, 100 m) up to 16. Mixing lights? Go by your cable route and total watts – each Power Pack page explains how.

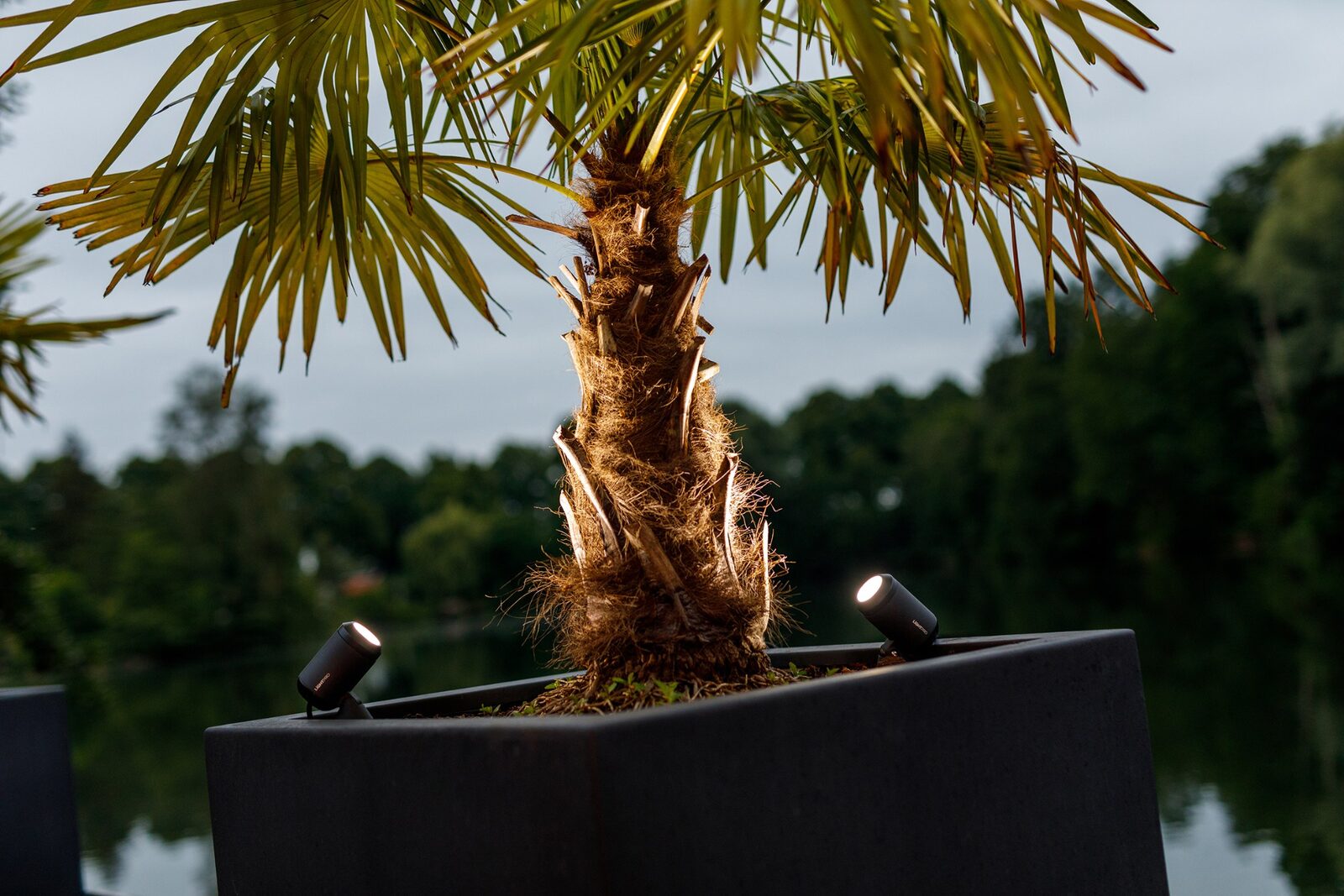

The Castor 9 covers two jobs in one fitting. As supplied it throws a 60-degree beam for lighting a broader tree or shrub; fit the reflector that comes with it and the same spot narrows to 30 degrees for a tall, slim target such as a trunk or a column. Range runs to around fifteen metres.
Colour rendering is the highest in the Castor range at CRI 91, which keeps bark, foliage and brickwork looking like themselves rather than flattened out. The aluminium housing is IP67 with a matt anthracite finish, and output dims in six steps at the fitting.
Key features
- 60-degree beam, narrowing to 30 degrees with the supplied reflector
- 9 W at 12V, 670 lm, 3000K, CRI 91
- Lights up to 15 metres
- Six-step dimming, adjustable head
- IP67 rated aluminium housing in matt anthracite
- Ground spike, screws, plugs, Allen key and reflector supplied
Light effect

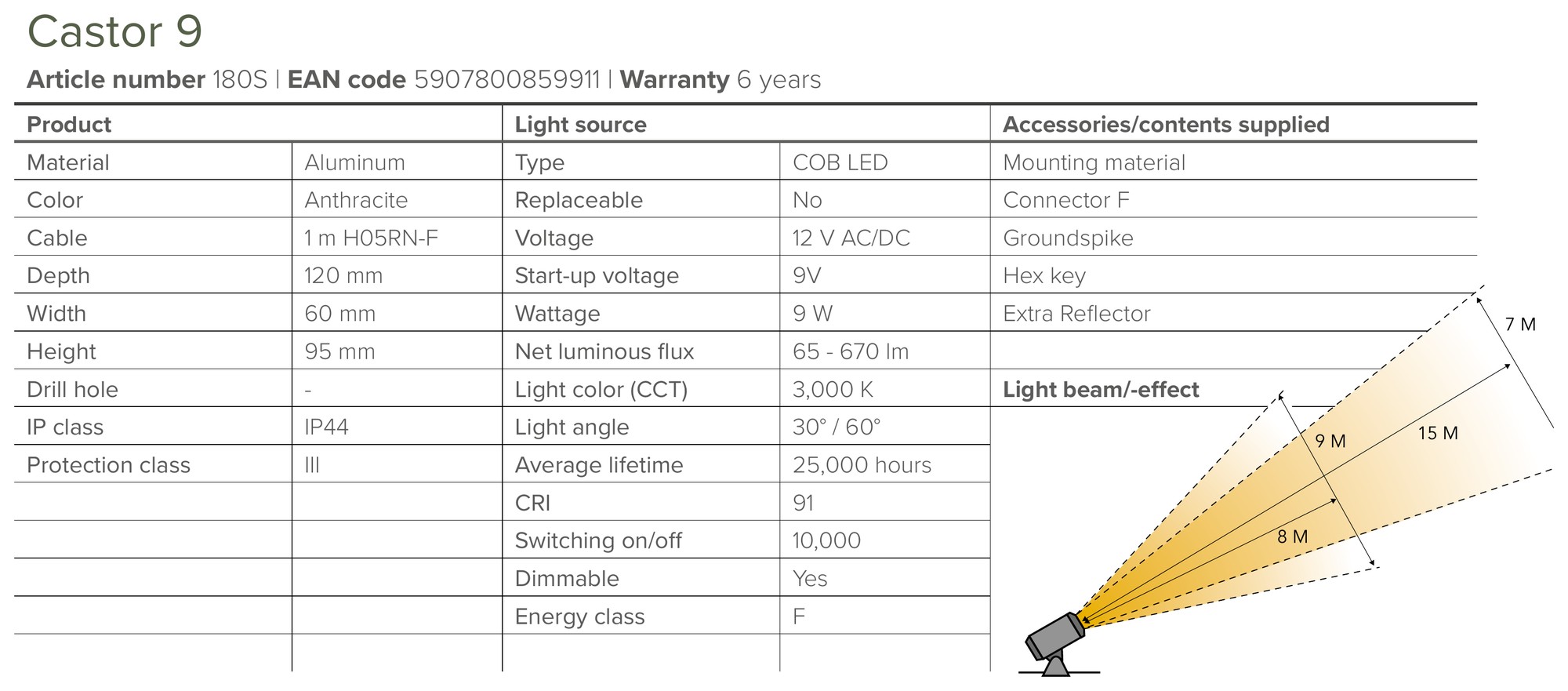

Specifications
- Article number: 180S
- EAN: 5907800859911
- Voltage: 12V low voltage (Lightpro 12V system)
- Suitable for: Tree, Hedge, Bush, Border, Object / image, Plants
- Dimensions (H x W x D): 95 mm x 60 mm x 120 mm
- Material: Aluminium
- Colour: Anthracite
- IP rating: IP67
- Electrical protection class: III
- Power: 9 W
- Light output: 670 lm
- Energy class: F
- Light colour: Warm white
- Colour temperature: 3000 K
- Colour rendering (CRI): 91
- Beam angle: 60°
- Light direction: Forward
- Light source type: COB LED
- Light sources per fitting: 1
- Light source included: Yes
- Replaceable light source: No
- Dimmable: Yes
- Dimming steps: 6
- External dimmer compatible: No
- Smart: No
- Cable length: 1 m
- Cable size: 18AWG
- AC/DC compatible: Yes
- Start-up voltage: 9 V
- Operating temperature: -20 °C to +50 °C
- Rated life: 25,000 hours
- Drive-over: No
- Underwater: No
- Adjustable: Yes
- Supplied accessories: F-connector
- Fixings supplied: Screws, Plugs, Ground spike, Allen key
- Weight: 0.595 kg
- Warranty: 6 years
